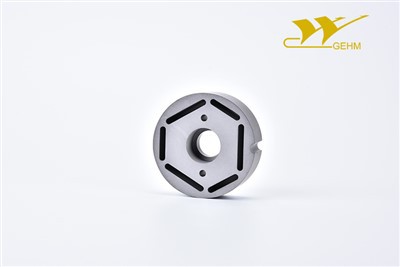

Special Carbide Milling Blanks:
Introduction:
We manufacture special insert blanks to your print, including
● Special form tool blanks
● Special ball milling insert blanks
● Other special inserts blanks
With state-of-art equipment and experienced engineers, we can make 1 set of tooling per day. Generally end user will grind, hone and then coating. With dozens of press and sinter machine in house, monthly press and sinter capacity is 5,000,000 pieces.
Specification:
Special Carbide Milling Blanks are usually pressed and sintered to customer’s CAD drawing. Customer can send us the finish insert design as well and our engineer will send the insert blank drawing with grinding allowance for confirmation.
Most Popular Grade for Special Carbide Milling Blanks:
Grade | Application | Microscope Picture |
GU20 | 10% Cobalt inside, an industry-standard for round tools. Recommended for rough and LIGHT-interrupted milling. PVD-coated for longer tool life. |
|
Notes: GU20 can replace KFS64/KCM25B of Kennametal, H10F from Hyperion and HB30 from Boehlerit. This is the most popular grade for special milling inserts. There are also grades such as GK05, which are good for cast iron machining for your selection. Welcome to send us enquiry to test these grades.
GEHM Grade | Co(%) | HRA | Hyperion | Ceratizit | Kennametal | Boehlerit | Estech | ZCC |
GU20 | 10.3 | 91.9 | H10F | CTS20D | KFS64 | HB30 | RX10 | YL10.2 |
Advantage and Features of GEHM’s Special Carbide Milling Blanks:
● 2D&3D engineering service
● 6 weeks quick delivery on new items
● Annually 50 million pcs inserts blanks batch production
Before use, all insert blanks need to be ground, ER and then coated for the best performance. The insert we are supplying are just the substrate. Toolmaker will make the post treatment. Following is a process chart for example.
Our Services for GEHM’s Special Carbide Milling Blanks:
● Grade certificate shipping with carbide insert blanks.
● Sample analysis service available, including dimensions to carbide grades analysis.
● We can provide grinding service or resource if necessary.
Production Process of Special Carbide Milling Blanks:
Our workshop for Special Carbide Milling Blanks:
GEHM presence at home and abroad:
FAQ:
Q1: Are all listed items in the catalog tooling available?
A: Sure, some standard items also have stock in our warehouse.
Q2: Do you have preform ability?
A: Yes, with lots of CNC machines in our factory, we can preform to customer’s print after pressing, such as preform the hole on drills. But for quantity over 500 pieces, die-pressing is more cost-effective.
Q3: What kind of pressing machine do you have?
A: Swiss-imported electric presses Osterwalder are equipped to ensure consistent accuracy.
Packaging & Shipping:
Shipping available by express such as DHL, FedEx and by air or by sea.
