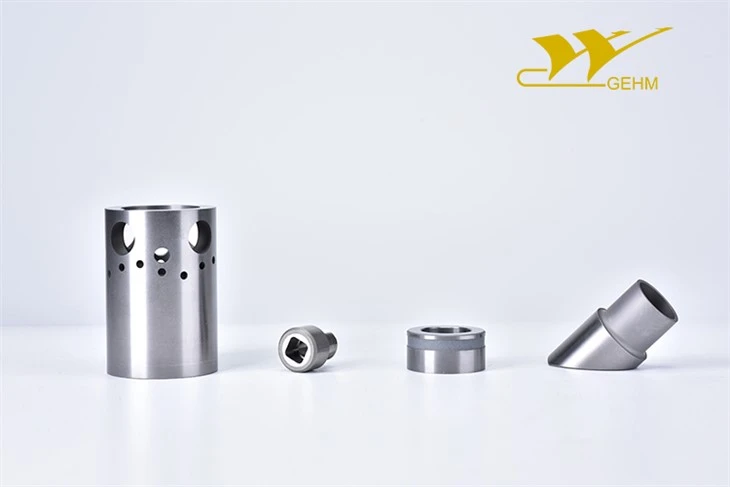

Cemented Carbide Cages:
Introduction:
The tungsten cemented carbide cages are widely used in the valves to control the fluid volume and pressure accurately. The most popular grade for cemented carbide cages are GK05A and GF06N, which have performed well in application of valves. The size of the product is controlled accurately and the position of the hole is accurate to meet the requirements of the valve in use.

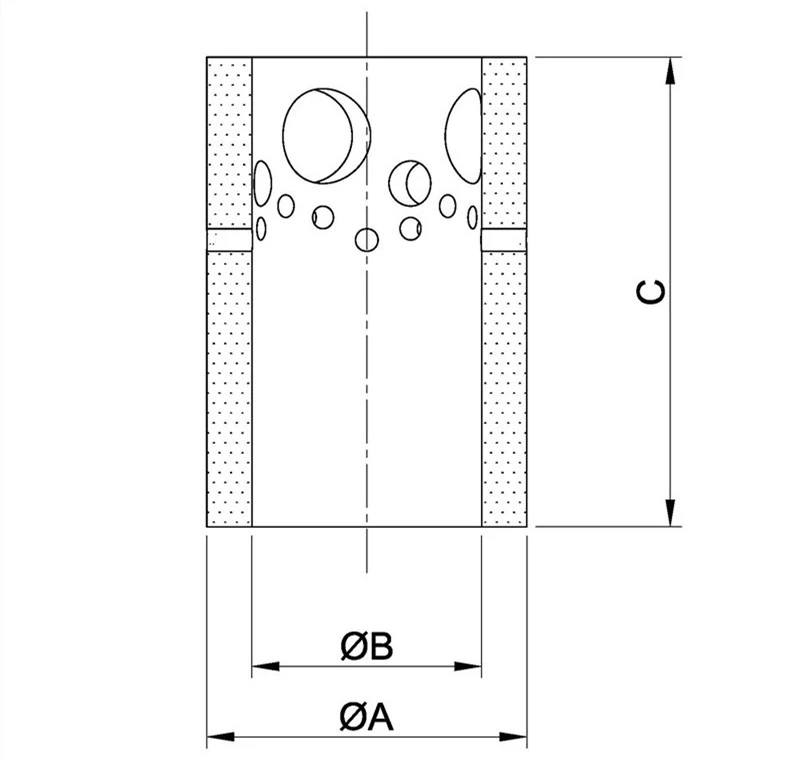

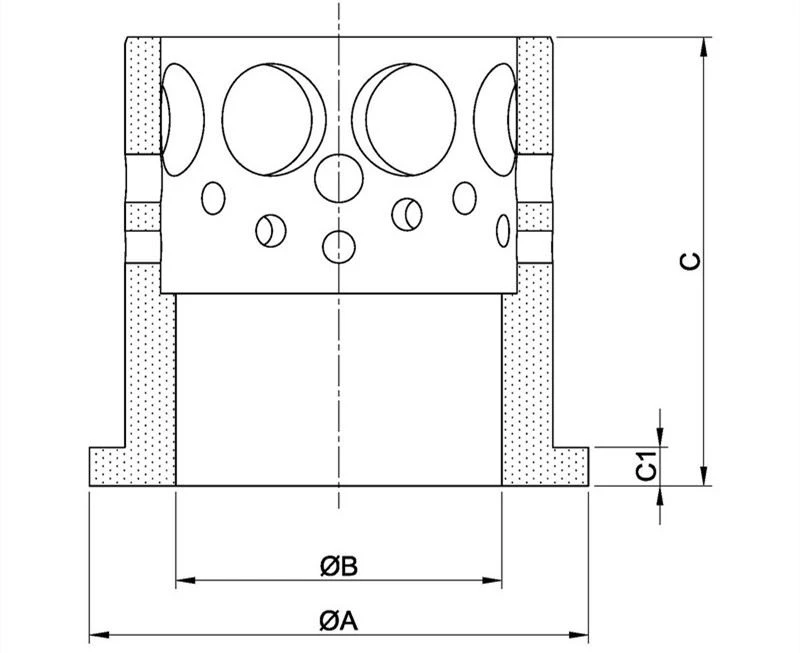

Product Parameter:
ΦA | ΦB | C |
70.8 | 50.8 | 104 |
95.3 | 76.2 | 111 |
155.5 | 101.6 | 140 |
Grade Offering:
The material information of grade GK05A and GF06N is as follows:
Grades | Physical Properties | Areas of Application | Major application and characteristics | ||||
Hardness | Density | TRS | Corrosion | Erosion | Toughness | ||
HRA | g/cm3 | N/mm2 | C | E | T | ||
GK05A | 92.0-93.0 | 14.80-15.00 | ≥2450 | ▲ | ● | ■ | It is suitable to produce wear parts used for oil-immersed pump, valve point and valve seat due to excellent wear resistance and high toughness, |
GF06N | 90.2-91.2 | 14.80-15.00 | ≥1760 | ● | ■ | ▲ | It is suitable to produce sleeves and bushings used in oil & gas industry due to excellent corrosion & erosion resistance, |
● Recommended application area
■ Secondary application area
▲ Alternative application area
Product details:
Price: Factory direct sale
Material: Cemented Carbide
Payment term: TT, LC
Delivery date: Around 4 weeks
Packing: Export standard
Our Advantages:
Consistent High Quality
100% Virgin Material
Customized Products
All mold made in-house
Our Services:
Material certification
Metallurgical services
OEM and ODM accepted

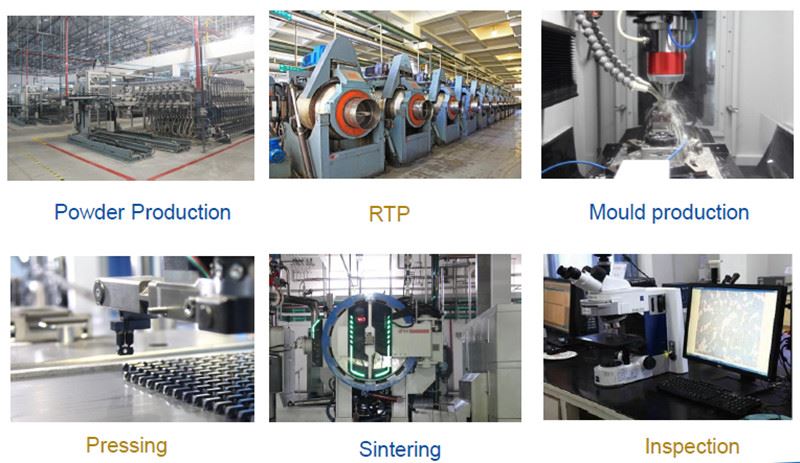

Production Process:
Our Certification:
FAQ
Q1: How many people in QC team? What kind of QC check?
Dimension and material will be inspected prior to and after production.
Q2: Can you analyze the preform sample I provide?
A: Yes, we have an R&D team, we can analyze the item you provide.
Q3: How do you make QC control? Inside or third party?
A: Usually, we do the QC control in house. If you need, third party like SGS report could be provided.
Q4: How many people in the R&D department?
A: There are 10 persons in our R&D department.
Q5: What is the warranty?
A: We can issue material certificate upon delivery. If there is any discrepancy on quantity/weight, please let us know within 2 weeks after arrival of the goods. If there is any quality discrepancy, please send us the report with 4 weeks. Thanks.
Packaging & Delivery:
Standard export packing and we are responsible for the damage caused in the course of transportation.
Methods of transportation can be by express, such as DHL, FedEx and air or sea.
Hot Tags: cemented carbide cages, China, suppliers, manufacturers, factory, customized
