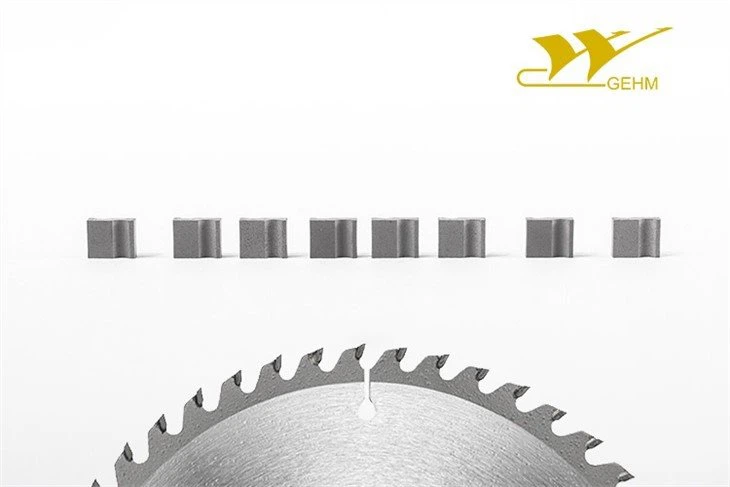

Special tips for saw:
Introduction:
We manufacture following standard cemented carbide saw tips or saw teeth:
● CWB, CWD,CWE,CWF,CWG,CWH
● WA,WB,WC,WD,WE,WF,WG,WH
● V-top saw tips
● Metric saw tips
Also special carbide saw tips or saw teeth can be pressed to your drawing.
Monthly capacity is over 2,000,000 pieces.
Specification:
Shape | Type | Dimension（inch） | ||
L | W | T | ||
inch | inch | inch | ||
| WD 7050 - WD 7800 | 0.312 | 0.050 -.800 | 0.093 |
WE 7050 - WE 7800 | 0.375 | 0.050 -.800 | 0.093 | |
WF 7050 - WF 7800 | 0.500 | 0.050 -.800 | 0.125 | |
WG 7050 - WG 7800 | 0.375 | 0.050 -.800 | 0.125 | |
WH 7050 - WH 7800 | 0.344 | 0.050 -.800 | 0.125 | |
WQ 7050 - WQ 7800 | 0.375 | 0.050 -.800 | 0.156 | |
Grade recommendation:
Grade | Co% | Hardness | Density | TRS |
(HRA) | (g/cm3) | (Mpa) | ||
GK10H | 6 | 90.5-91.5 | 14.85-15.05 | ≥2600 |
GK05 | 6 | 91.5-92.5 | 14.85-15.05 | ≥2720 |
GF40D | 12 | 87.0-88.0 | 14.20-14.40 | ≥3060 |
GU20 | 10.3 | 91.3-92.1 | 14.30-14.50 | ≥3500 |
GD25A | 10 | 88.5 | 14.5 | 420.5 |
GK30H | 8 | 89.7-90.5 | 14.70-14.80 | ≥2800 |
GK02H | 3.7 | 92 | 15.05-15.25 | ≥2000 |
GT20A | 8 | 91.7 | 12.37 | ≥1900 |
GT40 | 10 | 90.1-90.9 | 12.90-13.10 | ≥2380 |
Grade | Application |
GK10H | Suitable for semi-finishing and finishing of cast iron and non-metallic materials; Also used for non-ferrous materials, such as plastic, copper, aluminum, plywood and other processing |
GK05 | Suitable for the finishing of cast iron and non-ferrous materials, such as plastics, copper, aluminum, plywood, etc. and also for the processing of hardened steel. |
GF40D | Suitable for low speed and heavy cutting of stainless steel and titanium alloy, cut frozen or wet wood with bark, and rough machining of solid wood |
GU20 | Strong versatility, suitable for continuous and intermittent cutting turning. Especially suitable for stainless steel processing. Also used for processing plywood, fiberboard and solid wood |
GK30H | Suitable for low speed rough machining of cast iron, non-ferrous metal and non-metallic materials, wood, plastics, copper, aluminum, plywood and solid wood |
GK02H | Suitable for finishing of cast iron and non-ferrous metal; Used for solid wood, particleboard, density board processing |
GT20A | Popular and versatile steel cutting grade for both uncoated and coated(PVD) applications. Recommended for semi-finish and finish turning of steel and alloy steel. |
GT40 | Semi-finish and rough turning or milling of steel and alloy steel. |
Feature:
(1) Our special tips have stable performance and long life.
(2) We can ensure fast delivery and our price are cost-effective
(3) Custom-design can be meet upon request
(4) Factory with 10-year experience in cemented carbide blanks.
Application:
Our saw tips are usually used for process wood materials. Such as dry wood, soft wood, hard wood, original wood, multiple wood, and also used for nonferrous metal, most kinds of steel materials, granite, marble.
Our advantage:
(1) We can produce the non-standard saw tips according to your samples or drawings.
(2) 100% QC inspection before shipping.
(3) Fast but Flexible delivery time to meet your urgent needs.
(4) Direct manufacturing factory offering competitive price.
Our service:
(1) We have excellent after-sales service. If any problem of quality, we will be responsible for all of things in warranty.
(2) Competitive price with high quality.
(3) Keep R&D hi-tech products for the market.
(4) Free samples are available
Production process:
FAQ:
Q1: Are you trading company or manufacturer ?
A: We are factory direct sales. So, our price is very competitive.
Q2: How long is your delivery time?
A: It depends on the order quantity and what kind of product you purchase.
Q3: Do you test all your goods before delivery?
A: Yes, we have 100% test before ship them out. Every step during the production process will be strictly inspected. Please don't worry.
Q4: Do you have a pricelist for the blanks?
A: The price depends on the quantities you order.
Packaging & Shipping:
