Other Cemented Carbide Strips:
Product Introduction:
Carbide strip, widely applied in woodworking and stone working. The grade selection is very important, grades with higher hardness can last a longer lifetime, and however, the grade with better toughness is recommended when the machining or welding condition is not so good.
Product Parameter:
Cemented Carbide Strips blanks:
● Standard Metric style carbide flats / strips.
● Standard Imperial style carbide flats / strips.
● Preformed rectangular shape carbide strip blanks.
● Preformed square shape carbide flat blanks.
● All-sides straight carbide strips.
● Carbide flats with rear-angles for special use.
Also special carbide flats can be made according to drawings.
Product feature and application
Grade Recommendation:
● GU20 and GK05
● GU20 is the first choice in most cases. It can be used to all materials.
● GK05 is suitable for turning and milling of cast iron, non-ferrous metals. And for materials that not includes Steel and Stainless steel. Due to coarse grain size, GK05 with higher impact resistance that is much better than GU20 for stones.
● For high hardness requirement, GEHM also has GU10UF, GU20F, and GU25UF ultra-fine grain size RTP for steel cutting, machining etc.
● Carbide strips for metalworking: Square shaped carbide flats are suitable for steel & stainless steel cutting / machining (in GU20 grade) for fibers cutting / machining (in GU10 or GK05 grade) etc.
● GEHM also has GK30H, GF40D and many other grades for.

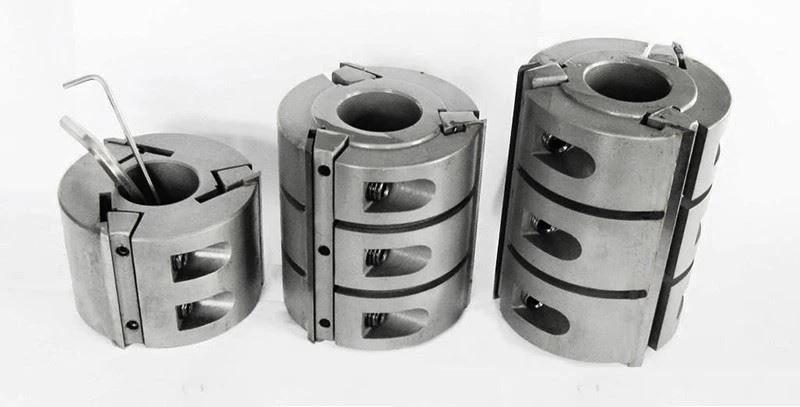

● Carbide flat bar can be further processed at clients’ factory / workshop by wire cut, grinding, soldering. Carbide bars applications including but not limit: cutting, machining, parting, grooving, woodworking, metal working etc.
● Special carbide flats even can be specially used in medical or other areas.
Product Details:
Shape | Style | Dimension（mm） | Grade | ||||||
T | W | L | GK05 | GU20 | |||||
inch | mm | inch | mm | inch | mm | ||||
| STB-224 | 0.063 | 1.60 | 0.750 | 19.05 | 6.000 | 152.40 | ● | |
STB-232 | 0.063 | 1.60 | 1.000 | 25.40 | 6.000 | 152.40 | ● | ||
STB-236 | 0.063 | 1.60 | 1.125 | 28.58 | 6.000 | 152.40 | |||
STB-240 | 0.063 | 1.60 | 1.250 | 31.75 | 6.000 | 152.40 | |||
STB-244 | 0.063 | 1.60 | 1.375 | 34.93 | 6.000 | 152.40 | |||
STB-248 | 0.063 | 1.60 | 1.500 | 38.10 | 6.000 | 152.40 | |||
STB-14 | 0.078 | 1.98 | 0.125 | 3.18 | 1.125 | 28.58 | ● | ||
STB-34 | 0.094 | 2.39 | 0.125 | 3.18 | 5.000 | 127.00 | ● | ● | |
STB-36 | 0.094 | 2.39 | 0.188 | 4.76 | 1.125 | 28.58 | ● | ||
STB-36A | 0.094 | 2.39 | 0.188 | 4.76 | 1.250 | 31.75 | ● | ||
STB-38A | 0.094 | 2.39 | 0.250 | 6.35 | 1.000 | 25.40 | |||
STB-38B | 0.094 | 2.39 | 0.250 | 6.35 | 1.500 | 38.10 | |||
STB-38D | 0.094 | 2.39 | 0.250 | 6.35 | 5.000 | 127.00 | ● | ● | |
STB-38E | 0.094 | 2.39 | 0.250 | 6.35 | 6.000 | 152.40 | ● | ||
STB-38L | 0.094 | 2.39 | 0.250 | 6.35 | 8.000 | 203.20 | ● | ||
STB-310A | 0.094 | 2.39 | 0.313 | 7.95 | 2.000 | 50.80 | ● | ● | |
STB-310B | 0.094 | 2.39 | 0.313 | 7.94 | 3.000 | 76.20 | ● | ||
STB-310C | 0.094 | 2.39 | 0.313 | 7.94 | 5.000 | 127.00 | ● | ● | |
STB-310L | 0.094 | 2.39 | 0.313 | 7.94 | 8.000 | 203.20 | ● | ||
STB-312C | 0.094 | 2.39 | 0.375 | 9.525 | 6.000 | 152.40 | ● | ● | |
Production Process of Other Cemented Carbide Strips:
Production Process of Other Cemented Carbide Strips:
GEHM Facilities:
GEHM Certification:
Our Factory for Other Cemented Carbide Strips:
GEHM attended cutting tool related shows in China and abroad:
Package and inspection of Other Cemented Carbide Strips:
Our Advantages:
● 4 weeks delivery on standard carbide flats / strips
● Multi grades for different application & machining.
● Free samples for new customers.
● Preformed carbide flats for medical or other special usage.
● HIP sintering
● High product consistency
● Free sample analysis, and multiple grade offering
● Special carbide strips after grinding could be used in many areas.
FAQ:
Q1: Grades and Tooling sharing
A: Different grades have different shrinkage rate, thus it may require different tooling for different grade. We will review case by case.
Q2: What kind of pressing machine do you have?
A: Swiss-imported electric presses were introduced to ensure consistent accuracy.
Q3: What is the normal lead time?
A: With more than 3000 sets of toolings, our normal delivery is within 4 weeks.
Q4: Would you send a catalog & pricelist with all the items you have available tooling for?
A: Leave your contact info and we'll send asap.
Q5: Are you open for OEM?
A:Surely we co-develop many carbide items with our customers.
Q6: What certification do you have?
A: We are ISO quality and environment certified, ISO9001 and ISO14001.
Q7: What’s the payment term?
A: T/T, 30% ~50% as deposit before production, balances before shipment.
Q8: What can carbide strip do, and in what fields mostly?
A: The tungsten carbide strips blank can be used in agricultural, carpenter or woodworking, metal working or for medical use.
Q9: How many people in the R&D department?
A: There are 12 persons in our R&D department with doctorate, master or bachelor degrees.
Q10: How many people in QC team? What kind of QC check?
A: Dimension and material will be inspected prior to and after production, GEHM have twenties specialized controller from Powder to Carbides..
Q11: How do you make QC control? Inside or third party?
A: Usually, we do the QC control in house. If you need, third party like SGS report could be provided.
Q12: What is the warranty?
A:We can issue material certificate upon delivery. If there is any discrepancy on quantity/weight, please let us know within 2 weeks after arrival of the goods. If there is any quality discrepancy, please send us the report with 4 weeks. Thanks.
Packaging & Shipping:
