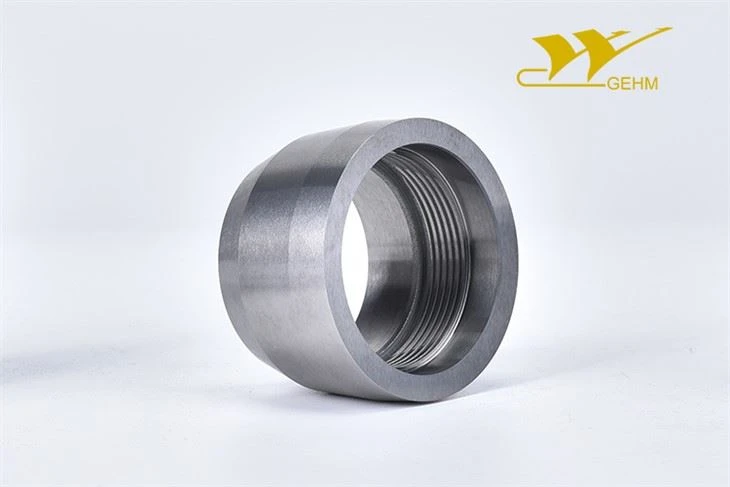

Tungsten Nose Cap:
Introduction:
The cemented carbide tungsten nose cap is used in MWD and LWD as an important part to help flushing, slurry sealing, flow diversion, and sending slurry pressure and other information back with pulse signal.
We accept customized drawings and make the part according to the customer's drawings with understanding of the customer's specific needs and professional customization. Every product will be carefully designed and manufactured to satisfy the customer.

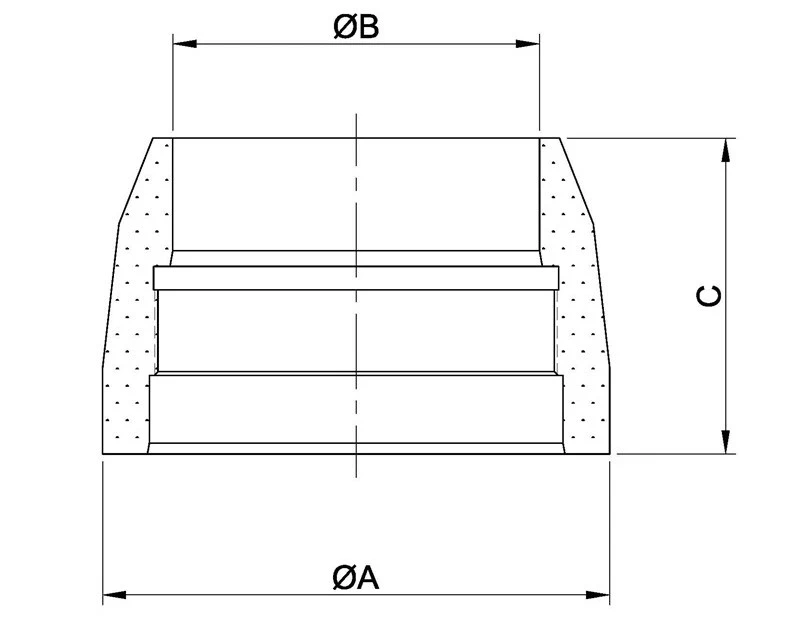

Product Parameter:
ΦA | ΦB | C |
65.0 | 47.0 | 40.5 |
Grade Offering:
Our product offerings are as diverse as the range of industries we offer solutions to. Details of some grades for tungsten carbide tungsten nose cap for MWD and LWD are as follows:
Grades | Physical Properties | Areas of Application | Major application and characteristics | ||||
Hardness | Density | TRS | Corrosion | Erosion | Toughness | ||
HRA | g/cm3 | N/mm2 | C | E | T | ||
GK35 | 88.5-89.5 | 14.30-14.50 | ≥2800 | ▲ | ● | ■ | It is suitable to produce sleeves bushings and nozzles due to high hardness and good wear-resistance, |
GF06N | 90.2-91.2 | 14.80-15.00 | ≥1760 | ● | ■ | ▲ | It is suitable to produce sleeves and bushings used in oil & gas industry due to excellent corrosion & erosion resistance, |
● Recommended application area
■ Secondary application area
▲ Alternative application area
Product details:
Application: Cemented tungsten carbide tungsten nose cap for MWD and LWD
Certification: ISO9001, ISO14001 etc.
Payment term: TT
Packing: Export standard
MOQ: 10 pcs
Our Advantages:
High accuracy with long lifespan
Various sizes and full types available
Products can be customized upon requirement
Our Services:
Grade recommendation/application advice
Custom according to customer's drawing
Sample analysis service available

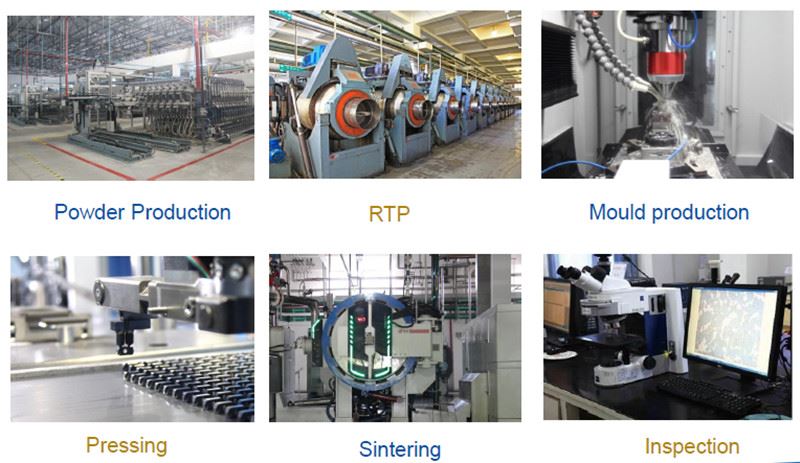

Production Process:
Our Certification:
FAQ:
Q1. What’s the main industry does your production aim at?
A: The key industries include aerospace, automotive, oil & gas, mining and woodworking.
Q2. What kind of sintering machine do you have?
A: We have HIP sintering furnaces and vacuum sintering furnaces from Japan.
Q3. What kind of packing do you use?
A: Generally the products packed by carton or plastic box and then carton box or wooden case.
Q4. Are all listed items in the catalog tooling available?
A: Not necessarily. It depends on the product. Some standard items are also available in stock.
Q5. What countries do you mainly export?
A: America is our main export market at present. Our custom-molded parts sell well there. And we also have business in Asia and Europe. Europe is a market with unlimited potential and it is also our focus of works for the long future. This is also the main purpose of our exhibition. We want to show our strength and our sincerity to the European customer. It is our hope to promote, by joint efforts, both trade and friendship to our mutual advantage.
Packaging & Delivery:
It will be properly packed before shipment
Air, ocean and express transportation all are available.
