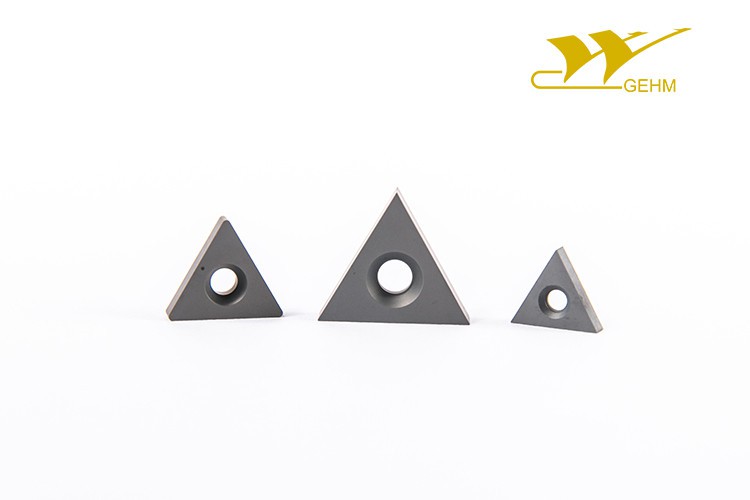

Cemented Carbide Threading Insert Blanks:
Introduction:
As China leading manufacturer of premium cemented carbide turning insert blanks, we GEHM supply a wide range of CNC indexable threading insert blanks from made in-house RTP powder for machining different thread types, to meet and exceed the rigorous standards and tolerances set by the oil and gas, automotive, medical and aerospace industries.
Threading inserts are indexable or rotatable cutting tools that are held by a special tool and used for creating various thread types and sizes in workpiece. Carbide threading inserts are the most common material type, as they allow for higher cutting speeds than tool steel and can retain a sharper cutting edge.
Specification:
Shape | Style | Dimension (mm) | Grade | ||||
IC | T | D | R | GU20 | GU20F | ||
| TNLW11034 | 6.35 | 3.18 | 3.00 | 0.4 | ● | ○ |
TNLW16034 | 9.525 | 3.18 | 4.00 | 0.4 | ● | ○ | |
TNLW220408 | 12.70 | 4.76 | 4.85 | 0.8 | ● | ○ | |
| TNXC160302 | 9.525 | 3.18 | 3.89 | 0.2 | ● | ○ |
TNXC160402 | 9.53 | 4.76 | 3.89 | 0.2 | ● | ○ | |
TNXC220402 | 12.700 | 4.76 | 5.16 | 0.2 | ● | ○ | |
TNXC270602 | 15.88 | 6.35 | 6.40 | 0.2 | ● | ○ | |
Grade property:
GEHM Grade | Average WC Grain Size | Industry Classification | Cobalt content | Hardness | Density | TRS(N/mm2) | Recommended coating | Application | ||||
Uncoated | CVD | PVD | Turning | Milling | Grooving | |||||||
GU20 | Fine | k20-k35 | 10.30 | 91.70 | 14.40 | 3500.00 | ● | ● | ☆ | ☆ | ☆ | |
GU20F | Ultra Fine | K15-K25 | 10.30 | 92.10 | 14.38 | 3800.00 | ● | ● | ☆ | ☆ | ☆ | |
Features:
● 100% virgin raw material
● High product consistency
● Optimal chipbreaker design
● Supreme cutting performance
● Long tool life
Application:
● Internal threading
● External threading
● Thread milling
Products:
Our Advantages:
● Material expertise for demanding challenges
● From lab research to batch production
● Multi-axial press capabilities
● All mould made in-house
● HIP sintered
● Quick delivery 4~6 weeks
Our Services:
● Material inspection and approval
● Dimension inspection and approval
● Sample analysis service available
● OEM and ODM accepted
Production Process:
Our Factory:
Our Facilities:
Our Certificates:
FAQ:
Q1. Would you send a catalog & pricelist with all the items you have available tooling for?
A: Leave your contact info and we'll send asap.
Q2. What kind of cutting tool can you provide?
A: We mainly produce sintered blanks for inserts, flats, circular saw.
Q3. What’s the main industry does your production aim at?
A: The key industries include aerospace, automotive, oil & gas, mining and woodworking.
Q4. Can you show me your production flow?
A: Pressing to sintering.
Packaging & Shipping:
