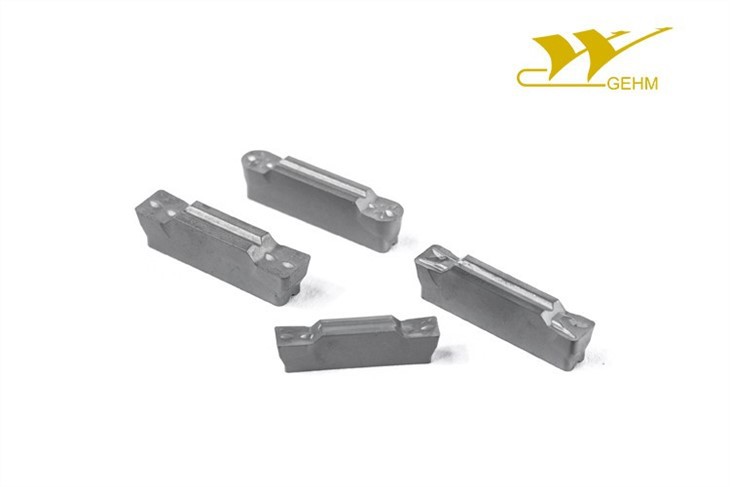

Cemented Carbide Grooving Carbide Insert Blanks:
Introduction:
As China leading manufacturer of premium cemented carbide turning insert blanks, we GEHM supply a wide range of CNC indexable grooving insert blanks from made in-house RTP powder for grooving application, with various specifications, chipbreakers and classical grades to select.
These inserts can cut grooves on both the outside and inside of a workpiece depending on the holder used. Cut square corner grooves in a workpiece or cut completely through a part. The rounded nose on these inserts contours the outside of the workpiece and cuts grooves with rounded edges.
Specification:
Shape | Style | Dimension（mm） | Grade | |||
B | L | D | R | GM15 | ||
| MGMN150-G | 1.50 | 16.00 | 1.20 | 0.2 | ● |
MGMN200-G | 2.00 | 16.00 | 1.60 | 0.2 | ● | |
MGMN250-G | 2.50 | 18.50 | 2.00 | 0.2 | ● | |
MGMN300-G | 3.00 | 21.00 | 2.35 | 0.4 | ● | |
MGMN300-M | 3.00 | 21.00 | 2.35 | 0.4 | ● | |
MGMN400-M | 4.00 | 21.00 | 3.30 | 0.4 | ● | |
MGMN400-TF | 4.00 | 25.30 | 3.25 | 0.4 | ● | |
MGMN500-M | 5.00 | 26.00 | 4.10 | 0.8 | ● | |
MGMN600-M | 6.00 | 26.00 | 5.00 | 0.8 | ● | |
| MRMN200-M | 2.00 | 16.00 | 1.65 | 1.0 | ● |
MRMN300-M | 3.00 | 21.00 | 2.35 | 1.5 | ● | |
MRMN400-M | 4.00 | 21.00 | 3.30 | 2.0 | ● | |
MRMN500-M | 5.00 | 26.00 | 4.10 | 2.5 | ● | |
MRMN600-M | 6.00 | 26.00 | 5.00 | 2.5 | ● | |
| MGMN200-T | 2.00 | 16.00 | 1.60 | 0.2 | ● |
MGMN300-T | 3.00 | 21.00 | 2.35 | 0.4 | ● | |
MGMN400-T | 4.00 | 21.00 | 3.30 | 0.4 | ● | |
Grade property:
GEHM Grade | Average WC Grain Size | Industry Classification | Cobalt content | Hardness | Density | TRS(N/mm2) | Recommended coating | Application | ||||
Uncoated | CVD | PVD | Turning | Milling | Grooving | |||||||
GM15 | Fine | M05-M15 | 10.5 | 91.8 | 14.34 | 2700 | ● | ● | ☆ | ☆ | ||
Features:
● 100% virgin raw material
● High product consistency
● Optimal chipbreaker design
● Supreme cutting performance
● Long tool life
Application:
● Internal grooving
● External grooving
● Face grooving
Products:
Our Advantages:
● Material expertise for demanding challenges
● From lab research to batch production
● Multi-axial press capabilities
● All mould made in-house
● HIP sintered
● Quick delivery 4~6 weeks
Our Services:
● Material inspection and approval
● Dimension inspection and approval
● Sample analysis service available
● OEM and ODM accepted
Production Process:

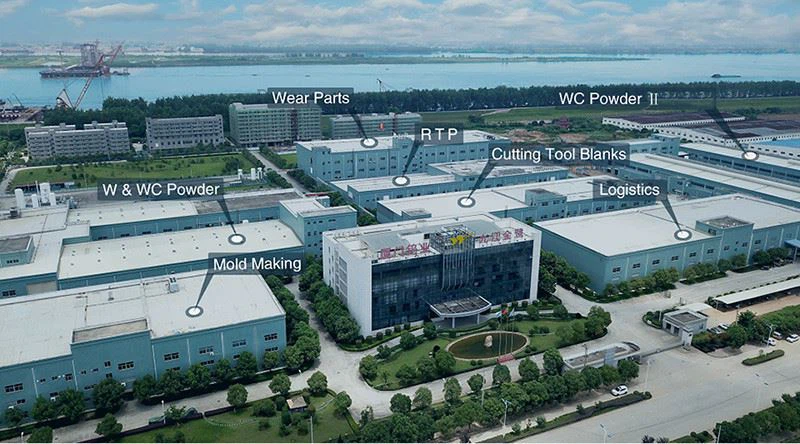

Our Factory:

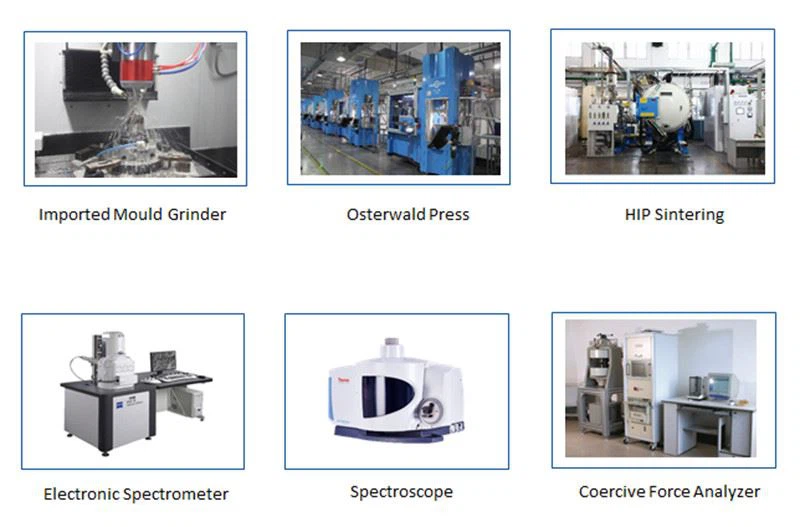

Our Facilities:
Our Certificates:
FAQ:
Q1. Are all listed items in the catalog tooling available?
A: Sure, some standard items are also available in stock.
Q2. Do you have Ni binder grades to match exact formulation below?
A: Yes, we have. For example, GF06N has 6% nickel which is mostly applied for wear parts.
Q3. Also, we would like to know if you have TNRW160404?
A: Sales should react quickly with reference to the catalog.
Q4. Would you please inform if you have tooling for the blank LNE 323-02 in a similar grade to TaeguTec´s TT6030?
A: Sales have to get familiar with the catalog and suggest nearest item in current available grade.
Packaging & Shipping:
